RAM 1500 LED Door Sill Plates: DT vs DS, Finish and Fitment
Choose RAM 1500 door sill plates by body generation first. RAM 1500 DS covers the 2009–2018 catalogue path; RAM 1500 DT covers 2019–Present. The two exact Matte PRO products used in this guide share the RAM 1500 artwork, but their vehicle ranges are different.
Use the code, year range, plate count and product record together. A RAM 1500 name on its own does not settle the threshold match.
DS vs DT: start with the body code
| Catalogue path | Listed range | Artwork | Set choices |
|---|---|---|---|
| RAM 1500 DS Matte PRO | 2009–2018 | RAM 1500 | FRONT or FRONT+REAR |
| RAM 1500 DT Matte PRO | 2019–Present | RAM 1500 | FRONT or FRONT+REAR |
The year ranges above come from the named product records. Choose the matching record before you compare finish colour or lighting options.
The exact RAM 1500 artwork

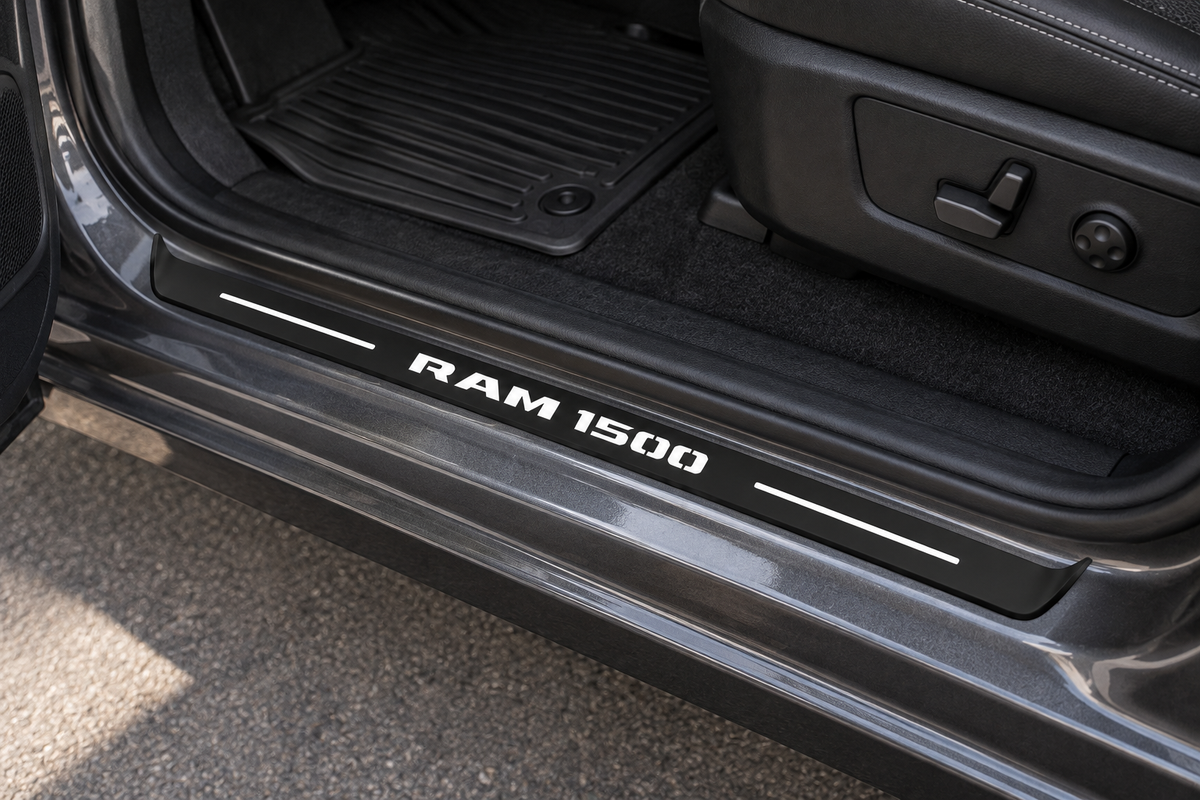

Both products use the RAM 1500 design. The catalogue images show the two-piece FRONT arrangement, with RAM 1500 lettering and white illumination on a black Matte PRO plate. The DT doorway render uses the same DT product record and artwork, so the hero and the link below point to one exact listing.
Keep the artwork attached to its product record. The DS and DT links look similar because the design is the same; the generation range is what separates their fitment paths.
Review the DS 2009–2018 RAM 1500 listing or review the DT 2019–Present RAM 1500 listing before ordering.
What Matte PRO means on these products
Painted stainless-steel upper plate
The product records describe a painted stainless-steel upper plate. Matte PRO combines that surface with the edge construction described on the same product pages.
Body-colour ABS edge
The edge uses ABS in the chosen body colour. The listed body choices are BLACK, WHITE, RED, GREEN, YELLOW, BLUE and ORANGE.
Top-surface illumination
Only the RAM 1500 lettering and decorative lines on the top surface illuminate. The colour-matched edge and lower surface remain unlit, which is the controlled light behaviour shown in the DT visualization.
Independent light choice
The products list WHITE, RED, Blue, YELLOW, ORANGE, GREEN, Flow RGB and Ice Blue as illumination options. Select the colour on the exact product page rather than assuming the render sets the order.
Choose the plate set before installation
The product selectors offer two configurations:
- FRONT: two front plates. This is the arrangement shown in both current RAM 1500 catalogue images.
- FRONT+REAR: two front and two rear plates. Choose it when you want all four listed positions and the selected product supports those positions.
Confirm the selected set on the live product page. The catalogue images illustrate the plate design and arrangement; the vehicle and order record determine the set you buy.
Run the fitment check in this order
- Identify DS or DT. Confirm the body code from the vehicle details, then check the listed year range. Do not identify the body generation from the year alone.
- Match the artwork. Confirm that the product says RAM 1500 and that the catalogue image matches the design you want.
- Choose the set. Select FRONT or FRONT+REAR only after deciding which threshold positions you need.
- Check the threshold. The records say dimensions are selected for the vehicle during manufacture. Check the prepared metal threshold area and the available plate outline before fitting the adhesive-backed plates.
- Plan the wiring. Wiring is required. Connect to a vehicle circuit activated when the door opens; the product records do not include a factory plug-and-play connector.
When the body code, selected set, artwork and threshold check agree, keep that exact product URL with the order. If one detail conflicts, pause and ask for vehicle-specific confirmation.
Use the product record for the final decision
The DT and DS pages document the Matte PRO construction, options, plate sets and wiring requirement for their named RAM 1500 ranges.
Start with the RAM 1500 DT 2019–Present Matte PRO product or the RAM 1500 DS 2009–2018 Matte PRO product. For other RAM applications, browse the RAM door sill collection and open the exact listing before ordering.
