Audi LED Door Sill Installation Guide
At the open Audi doorway, the usable metal area and hidden cable route expose the real question before illumination does. A4 B8, A5 8T or F5, and A7 C7 or C8 chassis language is essential because the familiar four rings do not identify the threshold geometry. a later A5 generation whose doorway should be checked against the exact body style. That makes the working sequence vehicle identification, dry fit, paint-safe cleaning, circuit testing, protected routing, controlled bonding, and a door-closure inspection.
fitment
Dry-fit until position and cable exit are unambiguous
Audi installation checkpoint first examines fitment evidence through A4 B8. Leave the adhesive liner intact. Place each side on the car, center the graphic relative to the doorway, confirm equal margins, and close the door slowly while observing seal and trim clearance. Mark removable reference points only after the position repeats. A close-up should show the plate fully supported by the flat surface. If an edge bridges a contour or rocks under finger pressure, stop and recheck the product rather than bending it into compliance. Audi model names persist across platform codes and body styles, so A4, A5, A6, and A7 shopping has to resolve chassis and generation before finish.
diagnose
Preflight: identify the Audi installation type
Audi installation checkpoint second examines diagnose evidence through A5 II F5. First determine whether the selected item is a standard overlay for the outer painted metal threshold or a true replacement for a factory sill assembly. This guide addresses the standard overlay. Audi model names persist across platform codes and body styles, so A4, A5, A6, and A7 shopping has to resolve chassis and generation before finish. Confirm model, generation or chassis, body style, plate orientation, and the supplied wiring instructions before trim is moved. Do not infer a connector, fuse, or wire color from another owner's different model. Audi's interior language is precise and low-contrast, making plate geometry, edge finish, and even illumination more important than adding another conspicuous badge.
installation
Prepare painted metal without damaging the finish
Audi installation checkpoint third examines installation evidence through A6 C6. Wash away loose contamination, then remove wax, silicone dressing, and oily residue using the method specified for the supplied adhesive and the vehicle's paint. For 3M VHB applications, 3M commonly specifies a 50:50 isopropyl-alcohol and water cleaning mixture, firm application pressure, and time for bond strength to build; follow the actual tape instructions rather than assuming every adhesive is identical. Work at an appropriate temperature and allow the surface to dry completely. Audi model names persist across platform codes and body styles, so A4, A5, A6, and A7 shopping has to resolve chassis and generation before finish.
installation
Map the door-activated circuit before making a connection
Audi installation checkpoint fourth examines installation evidence through A7 C8. Test the intended source with the vehicle awake, door open, door closed, locked, and after the courtesy-light timeout. Modern interior lighting can be body-control-module managed, ground switched, dimmed, or delayed. A multimeter and vehicle-specific wiring information are more reliable than color matching. Protect the circuit as instructed, use secure connections, preserve serviceability, and seek a qualified automotive electrician when the trigger behavior or current path is uncertain. Audi's interior language is precise and low-contrast, making plate geometry, edge finish, and even illumination more important than adding another conspicuous badge.
installation
Route the wire so trim movement cannot crush it
Audi installation checkpoint fifth examines installation evidence through A4 B8. The cable should leave the plate without a sharp bend, cross no exposed flange, and sit away from clip holes, seat-belt hardware, weather-seal pinch points, and moving trim. Owner reports repeatedly trace failures to crushed or shorted sill wiring. Use the planned recess or protected trim path, secure excess length, and reinstall clips without trapping the conductor. Photograph the wiring route before the final trim goes back; that image becomes useful service evidence. Audi model names persist across platform codes and body styles, so A4, A5, A6, and A7 shopping has to resolve chassis and generation before finish.
installation
Bond once, with alignment already solved
Audi installation checkpoint sixth examines installation evidence through A5 II F5. Peel only enough liner to establish a controlled starting edge, hold the plate above the surface, and lower it along the reference marks without stretching the adhesive. Apply even pressure across the full bond area as directed by the tape manufacturer. Do not repeatedly lift and reset pressure-sensitive adhesive. Repeat the clearance test after bonding, then keep the area dry and unloaded for the specified cure period instead of judging full adhesion immediately. Audi's interior language is precise and low-contrast, making plate geometry, edge finish, and even illumination more important than adding another conspicuous badge.
ownership
Troubleshooting symptoms after installation
Audi installation checkpoint seventh examines ownership evidence through A6 C6. One dark side suggests checking its connector, polarity, cable route, and local ground or trigger. Both sides staying on points to trigger selection or control behavior. Intermittent operation after stepping near the plate raises concern about a pinched conductor or loose joint. Edge lift calls for contamination, temperature, pressure, and unsupported-contour review. Disconnect power before investigating damaged wiring, and do not hide a fault beneath trim until its cause is understood. Audi model names persist across platform codes and body styles, so A4, A5, A6, and A7 shopping has to resolve chassis and generation before finish.
verify
Commission the lighting and inspect the finished doorway
Audi installation checkpoint eighth examines verify evidence through A7 C8. Open each door independently and observe startup, brightness, flicker, and timeout behavior. Close and lock the vehicle, wait for interior systems to sleep, and confirm the plates switch off. Check that trim is fully seated, the weather seal lies naturally, no cable is visible, and the door closes without rubbing. A before/after comparison should show straight alignment and an undisturbed entry surface, not merely a glowing logo in darkness. Audi's interior language is precise and low-contrast, making plate geometry, edge finish, and even illumination more important than adding another conspicuous badge.
Expert verdict
The answer for this exact Audi scope
For this Audi installation verdict, the recommendation remains conditional: bright metal favors visible material character, a black powder-coated face favors low daytime contrast, and custom work requires an approved aperture-scale proof. A completed Audi installation should be straight, fully supported, electrically predictable, and free of cable pressure. A4 B8 owner experience cannot establish the trigger or trim route for A7 C8. Audi's interior language is precise and low-contrast, making plate geometry, edge finish, and even illumination more important than adding another conspicuous badge.
Audi installation control
Protect Seals, Drainage and Trim Alignment
Audi doorways reward precision because the factory visual language is tightly aligned. A plate can be physically attached yet still look wrong if its edge fights a trim line, lifts the weather seal or creates an improvised cable path. The installation should disappear into the doorway when unlit.
Reference the factory line
Dry-fit against the complete open doorway, not one local edge. Audi trim and sill creases may taper toward the front or rear.
Keep the seal neutral
The weather seal should return to its original position without pressure from the plate or cable. Compression is not a routing method.
Preserve water paths
Do not bridge drains or create a channel that guides water toward wiring or adhesive edges.
Test the welcome cycle
Confirm activation, timeout and door behavior before closing trim, then retest after the vehicle has completed a normal lock cycle.
| Stage | Evidence | Acceptance test |
|---|---|---|
| Dry-fit | Even visual offset and full surface contact | No rocking, seal lift or contact with factory trim. |
| Surface preparation | Clean, dry, dressing-free paint | Low-tack guide remains stable and area shows no residue. |
| Routing | Protected path away from drain and moving edges | Cable cannot be pinched by normal door/seal movement. |
| Final test | Repeatable door-triggered behavior | All doors and locking states behave as expected. |
Product evidence
Published Audi examples that support the guide
These products are shown after the editorial answer because they are evidence for the fitment, finish, and artwork decisions above. Confirm the exact listing before ordering.
Audi A6 C8 2018+ Stainless Steel LED Door Sills – Allroad Logo
The A6 C8 Allroad plate is a useful stainless installation reference where straight alignment and seal clearance must look factory-resolved.
View exact product
Audi A5 II F5 2016+ Stainless Steel LED Door Sills – A5 Logo
The A5 F5 example demonstrates proportion on a different doorway; confirm body style and plate length before transferring any placement assumption.
View exact productCompatibility paths
Relevant Audi collections only
Reader questions
Questions raised during Audi research
Where do standard Audi LED door sills mount?

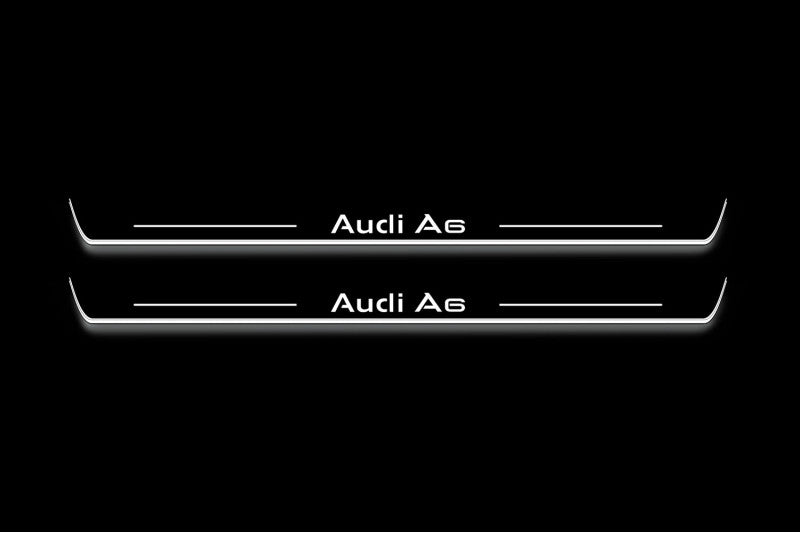

Standard overlay versions mount on the outer painted metal threshold. They do not automatically replace the factory interior plastic sill assembly.
Should I copy a wire color from another vehicle?
No. Verify the door-activated circuit with vehicle-specific information and testing because trigger and ground behavior can vary by model, generation, and equipment.
Why must the plate be dry-fitted before bonding?
Dry fitting proves support, alignment, cable exit, weather-seal clearance, and door closure before pressure-sensitive adhesive makes repositioning unreliable.
What causes an illuminated sill to flicker after installation?
Likely causes include a loose connection, incorrect trigger, damaged conductor, pinched cable, poor ground, or a fault within the illuminated assembly.
