How to Install LED Door Sill Plates: Mounting, Wiring and Testing Guide
Measure the circuit, test the door response and protect the route before the adhesive becomes permanent.
Plan the work before touching the adhesive
LED door sill overlays mount on the flat painted-metal threshold and connect to a verified low-voltage 12V vehicle circuit. They do not replace the interior plastic sill trim and do not use batteries. Wiring access, trim layouts and circuit behaviour vary by vehicle.

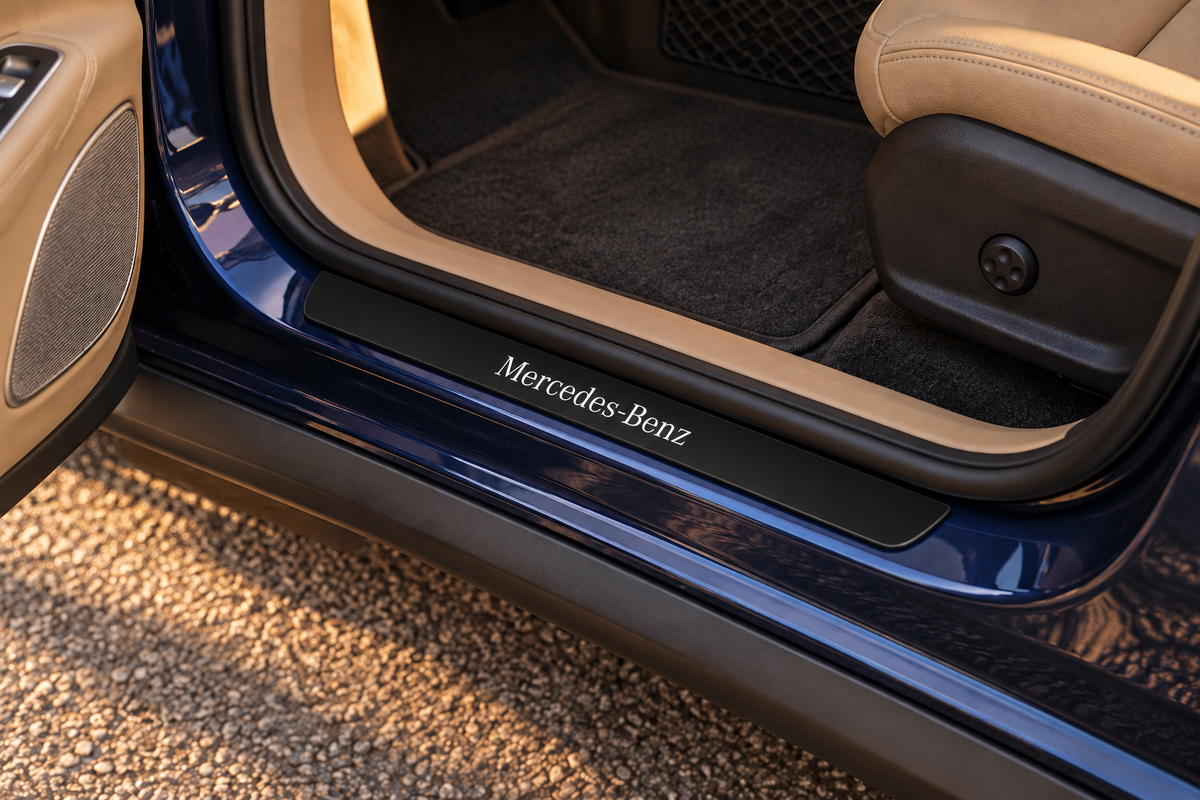

The Mercedes-Benz GLC X253 product shown in the hero is an illustrative example for placement and light-zone context. It is not a wiring diagram, and its dimensions or connection point must not be transferred to another vehicle.

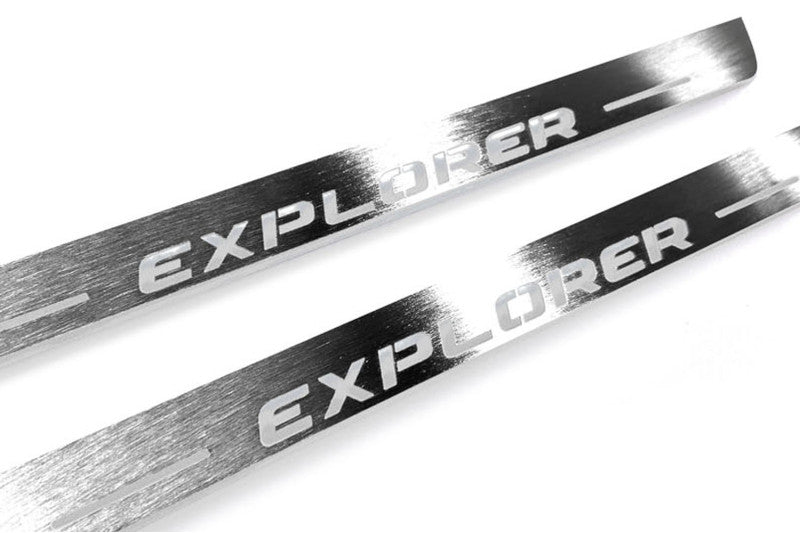

Use the product images for a placement check
Before you begin
- Check that the threshold shape matches the product images.
- Dry-fit every plate and confirm left and right positions before removing backing.
- Plan the wire route before exposing the adhesive.
- Do not rely on factory wire colour alone; connection points differ by make, model and year.
- Never work on orange high-voltage EV wiring.
- Do not connect to SRS or airbag connectors.
- Use a qualified auto electrician if you cannot identify and measure a safe circuit.
Tools and materials
Prepare what suits the vehicle. None of these items should be assumed to be included with the sill set:
- Microfiber cloth and isopropyl alcohol or a suitable automotive cleaner
- Plastic trim tools and masking tape
- Multimeter
- Wire stripper/crimper
- Insulated automotive connectors or professionally soldered, heat-shrunk joints
- Automotive cloth tape or cable ties
- Suitable circuit protection when the installation requires it
Installation video example
Real installation example shown on a Toyota Tundra. Trim removal, factory wire colours and connection points differ by vehicle. Verify the circuit on your own vehicle before making a connection.
Step-by-step installation
Step 1 — Test-fit every sill plate
Lay out the plates included in the selected set and confirm the left and right sides. Check logo position, flat contact with the painted metal threshold and clearance from the door before removing the protective layer.
Step 2 — Plan the wire route
Choose a safe route under the interior trim. Keep the wire away from seals under heavy pressure, hinges, seat mounts, moving parts and sharp metal edges.
Step 3 — Prepare the threshold
Clean and degrease the painted metal surface, then wait until it is completely dry. Do not apply the plate over dirt, wax, silicone or moisture.
Step 4 — Loosen only the necessary trim
Use plastic trim tools and remove only the pieces needed for routing. Disassembly order is not identical on every vehicle, so follow the service information for the model and avoid forcing clips or panels.
Step 5 — Route and secure the wiring
Guide the wires beneath the trim, leave enough slack for safe movement and secure them so the trim can return without pinching the cable.
Step 6 — Identify a door-activated 12V circuit
Use a multimeter to identify a low-voltage circuit whose state changes when the door opens and closes. Do not select a wire by colour alone. The sill red wire is positive; the sill black wire is negative or ground. Vehicle wire colours differ, so measure the vehicle circuit before connecting.
Step 7 — Make and protect the connection
Use an appropriate automotive connection method. Make the joint mechanically secure and fully insulated, and use suitable circuit protection where the installation calls for it. Do not twist wires together and leave them under ordinary office tape.
Step 8 — Test before final adhesion
Before attaching the plate permanently, check that the light turns on when the door opens, turns off correctly after the door closes, does not flicker, and that every plate works. Confirm that no wire is pinched anywhere.
Step 9 — Apply the sill plate
Remove the protective layer gradually without touching the adhesive. Align the plate with the masking-tape marks and press it evenly onto the flat painted metal. Do not assume an adhesive curing time unless the tape manufacturer confirms it.
Step 10 — Reassemble and perform a final check
Return the trim to its original position. Open and close the door several times, then check illumination, plate alignment and clearance from the door and weather seal.
Installing a FRONT+REAR set
Install and test one door first. Only after that test succeeds should you repeat the process on the other doors. Verify circuit capacity and protection before extending the wiring. Route rear-door wires neatly to the selected connection point, and do not assume all four doors use the same factory wire.
Common problems and checks
| Problem | Check |
|---|---|
| Does not light | Check polarity, the measured 12V source, ground and every connection. |
| Stays on | The selected circuit may be constant power rather than door-activated. |
| Flickers | Check for a weak connection or unstable ground. |
| Works with the wrong door | Check the selected circuit and the vehicle’s door-lighting logic. |
| Adhesive lifts | The surface may have been dirty, damp or uneven. |
| Door touches the sill | Recheck the position and whether the mounting area suits the plate. |
These checks are general guidance. The correct circuit, trim route and mounting area depend on the vehicle.
When professional installation is sensible
Use a qualified auto electrician if you cannot use a multimeter, cannot identify a safe 12V circuit, see SRS or high-voltage wiring nearby, need to remove complex panels, or are unsure about polarity or circuit protection.
Review the measuring guide before installation and compare the selected product with the usable metal threshold.
Quick answers
Do LED door sills use batteries?
No. The guide covers wired accessories connected to a verified low-voltage 12V vehicle circuit.
Where do they mount?
On the flat painted metal part of the door threshold, not as a replacement for the interior plastic sill trim.
Can wire colour identify the connection?
No. The sill red wire is positive and the black wire is negative or ground, but vehicle colours differ. Confirm the vehicle circuit with a multimeter.
What should be tested before permanent adhesion?
Test door response and shutoff, check for flicker, confirm every plate works and make sure no wire is pinched.
